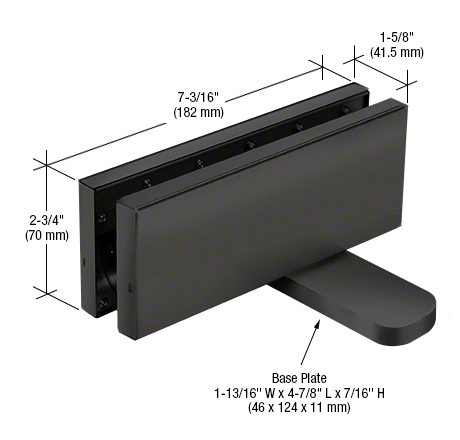

Hydraulic Bottom Patch Fitting Kit
90° Hold Open Part No: S300KHO90
No Hold Open Part No: S300KNHO
SPECIFICATIONS:
​
Material: Solid Aluminum Alloy Body, Stainless Steel Covers
Glass Thickness Range: 3/8"-1/2" (10-12mm)
Cut Out: Per published Summit Hardware specifications
Warranty: 5 Years

PRODUCT FEATURES:
- Require no Digging or Cutting of Floor
- Quick abd easy installation with just 2 screws
- Adjustable Closing and Latching Speeds
- Hold Open and No-Hold Open available
- EN-3 for Interior and Exterior Applications
- Glass Thickness: 3/8" - 1/2" (10-12mm)
- Maximum Opening 150° and controlled 135°
- Maximum Door Weight: 220 lbs. (100kg)
- Maximum Door Width: 39.375" (1,000mm)
- Maximum Door Height: 124" (2,591mm)
- Durability: 500,000 Cycles Tested
- Corrosion Resistant
- UL Listed
- 5 Year Warranty
AVAILABLE FINISHES:



Polished
Stainless
Brushed
Stainless
Matte
Black


WHAT'S IN THE BOX:
- Hydraulic Bottom Patch Fitting
- Top Patch Fitting w/ 300 Insert
- 401 Free Swinging Top Pivot (w/ screws)
- Gasket Sets for 3/8"-1/2" Glass
- Color Matched Adjustable Mounting Base Plate (w/ anchors)
- Allen Wrenches for installation and adjustments
- Installation Instructions
- 7" x 3/8" (10mm) SDS Hammer Drill Bit w/ Super Carbide Tip

Notes:
- Do not clean with harsh chemicals, as this may void manufacturer’s warranty.
